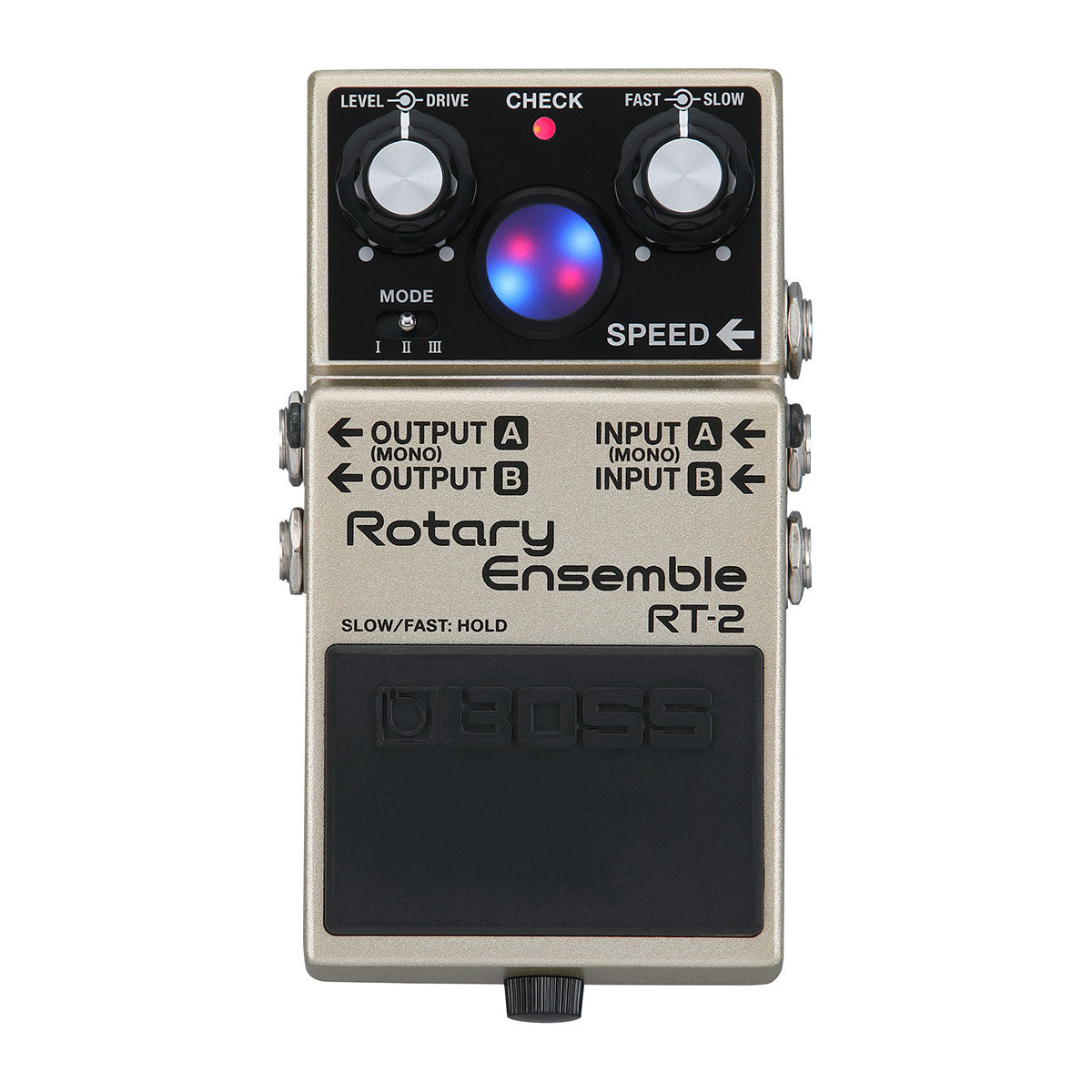

vintage boss pedal BOSS RT-2 Rotary Ensemble Pedal – Bananas At Large Inc.® Musical Instruments & Pro Audio

Rotary Magic

Initially developed for organs in the 1940s, rotary speakers produce mesmerizing modulation effects with motor-controlled components that physically spin within the cabinet at variable speeds. This impressive sound is a vital part of the classic combo organ voice, and guitarists and other musicians have also employed rotary speakers to infuse iconic tracks with their distinctively rich depth and movement.

Authentic Performance

The most revered rotary speaker designs feature a spinning high-frequency horn (treble rotor) and a woofer that feeds into a rotating drum (bass rotor). Changing rotor speeds between fast and slow creates a steady stream of tonal shifts that players have long used for expressive effects. The RT-2 authentically replicates these audio behaviors, coupled with two-way speed control, a Rise/Fall Time switch for adjusting the transition time between speeds, and a colorful indicator that shows the current rotation of the virtual rotors.

Three Versatile Tones

Use the RT-2’s three-position Mode switch to call up the classic rotary speaker voice and two modern variations developed with custom BOSS tuning.

Mode I — A faithful reproduction of the most famous vintage rotary speaker design, realized with the latest BOSS modeling technology. This mode adds traditional rotary color to any instrument, from guitar and bass to organs, electric pianos, synthesizers, and more.

Mode II — The vintage rotary sound, enhanced with a wider tonal range. This mode provides increased spatial performance when paired with overdrive and distortion pedals.

Mode III — Provides enhanced definition with intense modulation and drive settings, adding power and presence to arpeggio playing and solos.

Vintage Saturation and Tonal Balance

Inspired by the tube amplification circuits in vintage rotary speakers, the RT-2’s Drive knob lets you add pleasing distortion to the sound, from mild to gritty. Via a rear-panel switch, this dual-function control can alternately adjust the volume balance between the treble and bass rotors to dial in different tonal characteristics. Your most recent settings for drive and balance are automatically stored in memory and instantly recalled on the next power-up cycle.

Deep Expressive Control

Real-time speed control is essential to the rotary experience, and the RT-2 includes many options to achieve it. The pedal switch offers four operation types with many clever ways to bypass the effect and change speeds as you play. You can also connect up to two external footswitches for independent speed control and access to a “brake” setting that stops the virtual rotors at their current positions for unique tones. Alternately, an expression pedal unlocks continuous control of level, drive, balance, and speed, complete with assignable settings for each parameter.

Sample Rate

• 48 kHz

AD Conversion

• 24 bits + AF method
• AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

• 32 bits

Nominal Input Level

• INPUT A (MONO), INPUT B: -20 dBu

Maximum Input Level

• INPUT A (MONO), INPUT B: +7 dBu

Input Impedance

• INPUT A (MONO), INPUT B: 1 MΩ

Nominal Output Level

• OUTPUT A (MONO), OUTPUT B: -20 dBu

Maximum Output Level

• OUTPUT A (MONO), OUTPUT B: +7 dBu

Output Impedance

• OUTPUT A (MONO), OUTPUT B: 1 kΩ

Recommended Load Impedance

• OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater

Bypass

• Buffered bypass

Controls

• SLOW knob
• FAST knob
• DRIVE knob
• LEVEL knob
• MODE switch
• Pedal switch
• RISE/FALL TIME switch
• DRIVE KNOB switch

Indicator

• CHECK indicator (Used for indication of Tempo and check battery)
• VIRTUAL ROTOR

Connectors

• INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
• CTL/EXP jack: 1/4-inch TRS phone type
• DC IN jack

Power Supply

• Alkaline battery (9 V, 6LR61 or 6LF22, commercially available)
• AC adaptor (PSA series: sold separately)

Current Draw

• 115 mA

Expected battery life under continuous use

• Alkaline: Approx. 2.5 hours

*These figures will vary depending on the actual conditions of use.

Accessories

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Dry battery (9 V, 6LR61 or 6LF22)

Options (sold separately)

• AC adaptor: PSA series
• Footswitch: FS-5U
• Dual footswitch: FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

Size and Weight

• Width: 73 mm / 2-7/8 inches
• Depth: 129 mm / 5-1/8 inches
• Height: 59 mm / 2-3/8 inches
• Weight (including battery): 450 g / 1 lb
